Well point systems
Carbondale delivers efficient well point dewatering systems for shallow groundwater control. Ensuring stable, dry conditions for construction and excavation projects.
What is Well Point Systems
Well point dewatering systems are designed to lower groundwater levels in shallow excavations and construction sites. The system uses a series of closely spaced small-diameter wells (well points) connected to a header pipe and vacuum pump to extract water efficiently. It is widely used for temporary groundwater control where quick and cost-effective solutions are required.
At Carbondale, we provide customized well point dewatering solutions based on site conditions, soil characteristics, and project requirements. These systems are ideal for shallow aquifers and projects requiring controlled, localized groundwater management such as foundations, pipelines, and utility works.
Our team handles the complete process, including system design, installation, and performance monitoring. With proper configuration and continuous operation, we ensure effective drawdown, improved site stability, and smooth project execution.
Why Well Point Systems Are Needed
- Cost-effective groundwater control
- Ideal for shallow depths
- Flexible system design
- Quick installation
Installation Process
Site & soil assessment
Evaluate soil type, groundwater level, and excavation depth.
System design
Well point spacing, header pipe layout, and pump sizing are engineered around the excavation footprint and soil type.
Well Point Installation
Well points are jetted or driven into place around the perimeter and connected to the header pipe.

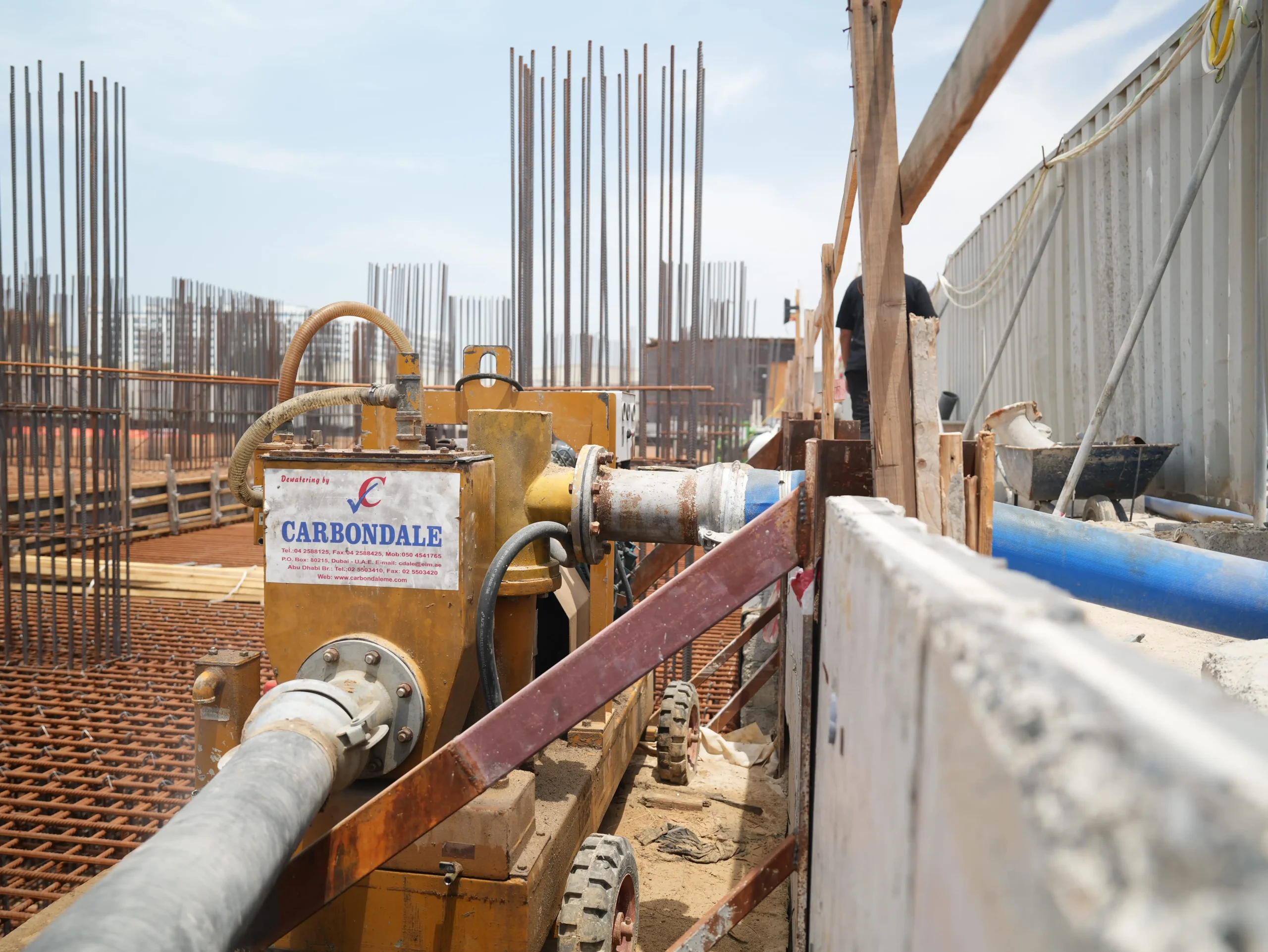

Pump & Header Setup
Connect system to header pipe and vacuum pump.
Monitoring & Operation
Ensure continuous pumping and performance control.
Water management
Discharged water is routed to appropriate filtration, settlement, or discharge points per site and regulatory requirements.
Demobilization
Once the structure is complete and backfill is stable, the system is pulled and the site is restored.
Need a solution for shallow groundwater control?
Not sure which system fits your site? Our team reviews your geotechnical report and recommends the right approach before you commit to equipment.
Where Well Point Systems
Are Applied
Shallow Excavations – Foundations, basements, and trench works.
Pipeline & Utility Projects – Sewer, drainage, and underground services.
High Water Table Areas – Sites requiring temporary groundwater lowering.
Construction Support Works – Roadworks, infrastructure, and site preparation..
Frequently Asked Questions
For customized technical advice and site-specific solutions, contact us.
How much drawdown can a well point system achieve?
Well point systems are most efficient up to roughly 6 meters (about 20 feet) of drawdown, which is the practical suction-lift limit of a vacuum-assisted well point pump. Greater depths typically call for staged well points or a deep well system.
Does well point dewatering affect nearby water quality?
The system is designed to affect only the localized area around the construction site, with minimal impact on surrounding groundwater quality.
How long does installation take?
Timelines depend on excavation size, soil conditions, and well point spacing, but well point systems are generally quicker to mobilize than deep well alternatives. We’ll give you a project-specific timeline after a site assessment.
What type of soil is suitable for well point systems?
They work best in sandy and permeable soils where water can flow easily toward the well points.
